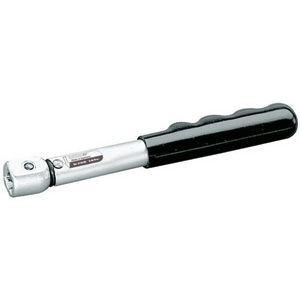

803G

DIN ISO 6789 | UNI EN ISO 6789

SNAP TYPE WITHOUT SCALE highly precise in repeating the preset value. Tolerance: ± 3% for each capacity value. Metallic acoustic trigger system when the set value is reached, with 3° angular movement of the rod body, which allows tightening even in places that are difficult to access. Easy to handle and lightweight construction. Automatic reset. The "FS" torque wrenches must be pre-calibrated before use, with calibration devices Art. Art. 793 GD/793GEA/793 GF - GH - GL/793GRA/793 GT and blocked at the desired value included in the tightening capacity of the wrenches indicated below.
Right and left-hand use, with unscrewing function without changing the wrench.
Supplied with certificate according to DIN ISO 6789.

Type with front insertion of inserts.

For use with calibration device Art. 793 GD, inserts Art. 806 GD 1/4 - 3/8 are required. For use with calibration device Art. 793 GL, inserts Art. 806 GD 3/8 - 1/2 or Art. 806 GE 3/8 - 1/2 are required (for Art. 803 G 200 inserts Art. 806 are required GM 1/2 or Art. 806 GP 1/2). For use with torque tester Art. 793 GT, inserts Art. 806 GD 1/2 "or Art. 806 GE 1/2" are required (for Art. 803 G 200 inserts Art. 806 GM 3/4 "or Art. . 806 GP 3/4 ").
