3140GA

DIN EN ISO 2503

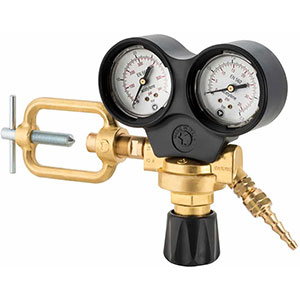

Moulded body with upper part in solid brass and lower part in die-cast zinc. Precision pressure gauges. Pressure adjustment knob in synthetic material and additional adjustment of the gas passage.
Robust clamp for connection to the cylinder, cyl. connection mm 17.
Threaded hose holder connection G 3/8 sin.
Hose holder diameter mm 9.

Pressure range inlet from 0 to 40 Atm.
Pressure range outlet from 0 to 2.5 Atm.
Max working pressure 1.5 Atm.

For valves with direct connection see Art. 3246 GF.
