3140GET

DIN EN ISO 2503

Type with optimal quality/price ratio.

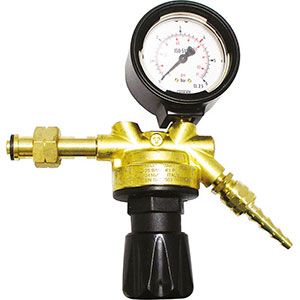

Moulded body with upper part in solid brass and lower part in high-resistance polymer. Precision pressure gauge (Ø 63 mm) equipped with protective cap, which allows maximum protection. Precise inlet pressure adjustment knob in synthetic material. Equipped with internal filter.

Ring nut for cylinder connection, W 20 x 1/14" sin.
Threaded hose holder connection G 3/8 sin.
Hose holder diameter mm 7.2/11.5.
Manometer scale from 0 to 6 bar.
Inlet pressure 25 bar.
Working pressure 4 bar.
Flow rate 5 m³/h.

Replacement pressure gauges available on request.
