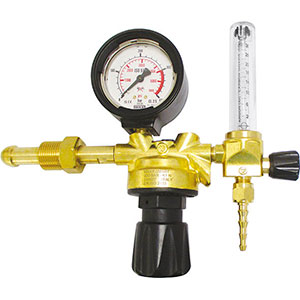

3140GLM

DIN EN ISO 2503

Type with optimal quality/price ratio.
Moulded body with upper part in solid brass and lower part in high-resistance polymer. Precision pressure gauge (Ø 63 mm) equipped with protective cap, which allows maximum protection. Precise inlet pressure adjustment knob in synthetic material. Equipped with internal filter.

Ring nut for cylinder connection, W 24.5 x 1/14" connection.
Threaded hose holder connection G 1/4.
Hose holder diameter mm 7.2/9.
Inlet pressure gauge scale from 0 to 300 bar and graduated flow meter from 2-30 l/min equipped with adjustment knob.
Inlet pressure 300 bar.
Working pressure 3.5 bar.
Flow rate >2 m³/h.

Replacement pressure gauges and flow meters available on request.
