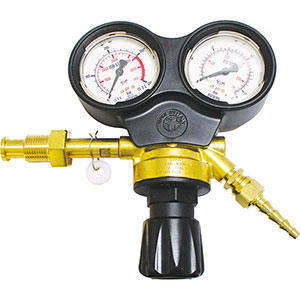

3140GPL

DIN EN ISO 2503

Type with optimal quality/price ratio.
Moulded body with upper part in solid brass and lower part in high-resistance polymer. Precision pressure gauges (Ø 63 mm) equipped with double protective cap, which allows maximum protection. Precise inlet pressure adjustment knob in synthetic material. Equipped with internal filter.

Ring nut for cylinder connection, W 21.8 x 1/14" connection.
Threaded hose holder connection G 3/8.
Hose holder diameter mm 7.2/11.5.
Inlet pressure gauge scale from 0 to 300 bar.
Outlet pressure gauge scale from 0 to 15 bar.
Inlet pressure 300 bar.
Working pressure 10 bar.
Flow rate 30 m³/h.

Replacement pressure gauges available on request.
