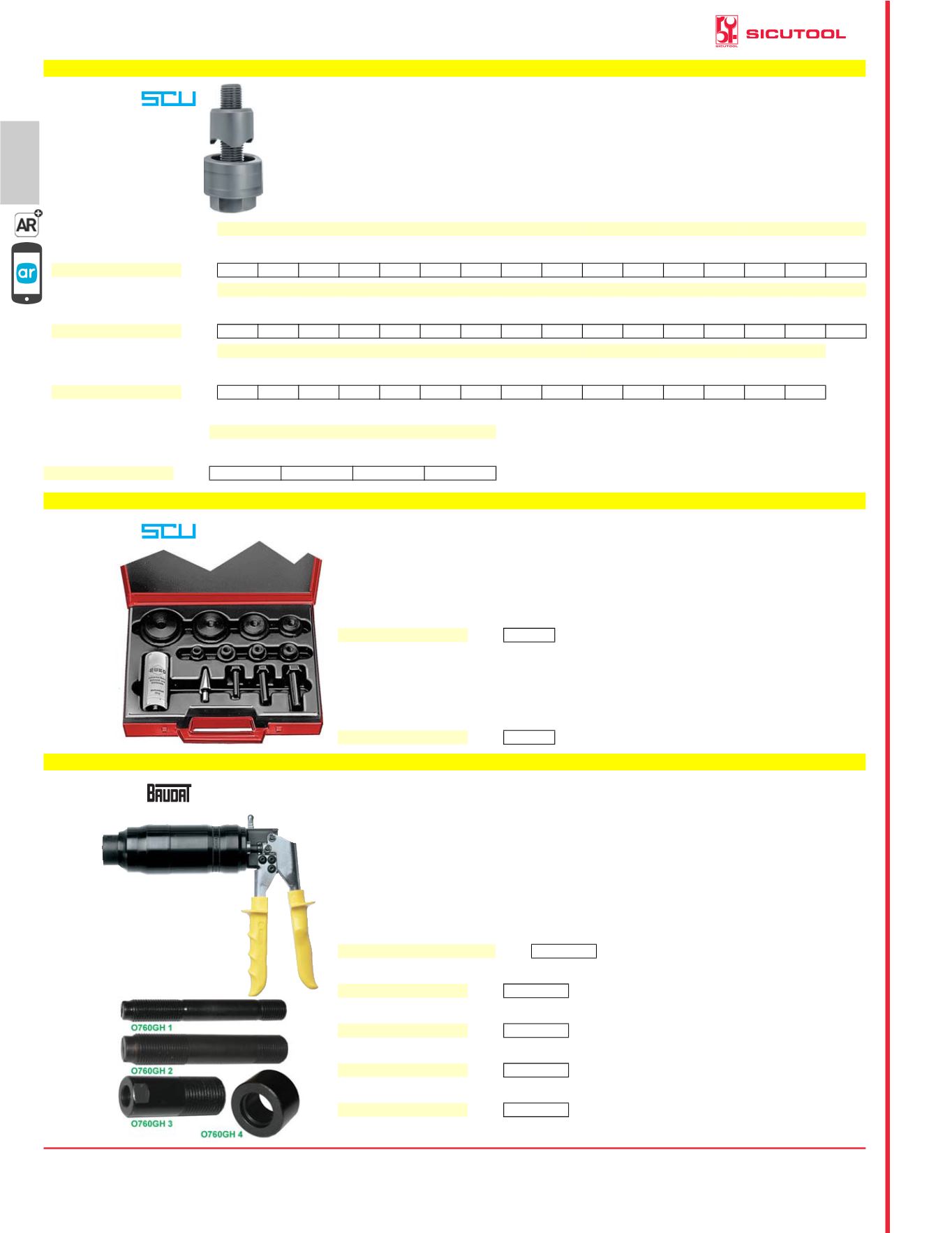

SCREW PUNCHES
154
2
Prices in EURO - VAT not included
SCREW PUNCHES
760GF
Prod. SCU
Industrial type with 3 hardened steel penetration tips. Punching is obtained through a tipped pre-
hole and later central screwing.>br>Suitable for steel, aluminium, plastic, leather, rubber, etc.
For bores Ø
mm
12,7 14 15,2 16 17 18 18,6 19 20 20,4 21 22 22.5 23 24 25
Pre-bore Ø
mm 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 12
Screw Ø
mm 8
8
10 10 10 10 10 10 10 10 10 10 10 10 10 10
760GF
Each 29,10 29,10 29,10 29,10 31,10 31,10 32,60 32,60 32,60 32,60 32,60 35,70 35,70 35,70 35,70 39,10
For bores Ø
mm
26 27 28,3 29 30 31 32 33 34 35 36 37 38 39 40 41
Pre-bore Ø
mm 12 12 14,5 14,5 14,5 14,5 14,5 14,5 14,5 14,5 14,5 14,5 14,5 14,5 14,5 20
Screw Ø
mm 10 10 12 12 12 12 12 12 12 12 12 12 12 12 12 16
760GF
Each 39,10 39,10 39,10 43,40 43,40 43,40 43,40 50,10 50,10 50,10 50,10 50,10 50,10 68,50 68,50 68,50
For bores Ø
mm
42 43 44 45 46 47 48 49 50 51 52 53 54 55 60
Pre-bore Ø
mm 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20
Screw Ø
mm 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16
760GF
Each 74,70 74,70 74,70 81,30 81,30 81,30 89,20 89,20 89,20 97,80 97,80 97,80 106,00 106,00 131,00
vuoto
SPARE SCREWS FOR ART. 760 GF. In hardened steel.
Screw Ø
mm
8
10
12
16
Pitch
1
1
1,5
1,5
For Art. 759GF Ø
mm 12,7 to 14 15,2 to 27 28,3 to 40 41 to 60
O760GF
Each 1,30
2,04
2,46
3,34
vuoto
SCREWPUNCHES
ASSORTED PUNCHES
760GFA
760GFB
Prod. SCU
Suitable for installers. Same features as Art. 760 GF, in practical, rugged case of synthetic
material.
Contents:
6 screwless punches Ø 15.2-18.6-20.4-22.5-28.3-32mm
2 screws supplied Art. O760 GF 10 - 12
With countersink and grease
760GFA
Each 319,00
vuoto
Product description as Art. 760GFA
Contents:
8 screwless punches Ø 15.2-18.6-20.4-22.5-28.3-37-47-54mm
3 screws supplied Art. O760 GF 10 - 12 - 16
With countersink and grease
760GFB
Each 526,00
vuoto
ASSORTEDPUNCHES
OIL-HYDRAULIC PUNCHERS
760GH
Orig. Baudat - Art. 50-099 (Mod. L S6)
Pistol grip type.
Lever hydraulic control, mono-hand, with rapid movement.
Operating parts in hardened steel, reinforced sheet arms, ergonomic and insulated handles.
Complete with 2 punch holder pins, adaptor and spacer.
Punching strength approx. 60 kN (6 t.).
Complete body without punches and dies.
Punches Ø by
mm 15.2 to 100
Punches sheet max. thickness mm 3
Length
mm 340
Weight
Kg
2.4
760GH
Each 792,00
vuoto
Spare pin (3/8x24 UNF) for punches and dies from Ø 15.2mm to 33mm.
O760GH 1
Each 19,80
vuoto
Spare pin (3/4x16 UNF) for punches and dies from Ø 35mm to 100mm.
O760GH 2
Each 46,20
vuoto
Spare adapter for pin Art. 0760 GH 1, with external 3/4x16 UNF thread.
O760GH 3
Each 13,10
vuoto
Spare spacer for punching machines Art. 760 GH - 760 GH 8.
O760GH 4
Each 16,30
vuoto
When stocks are depleted, we will provide it with handles black instead of yellow.
