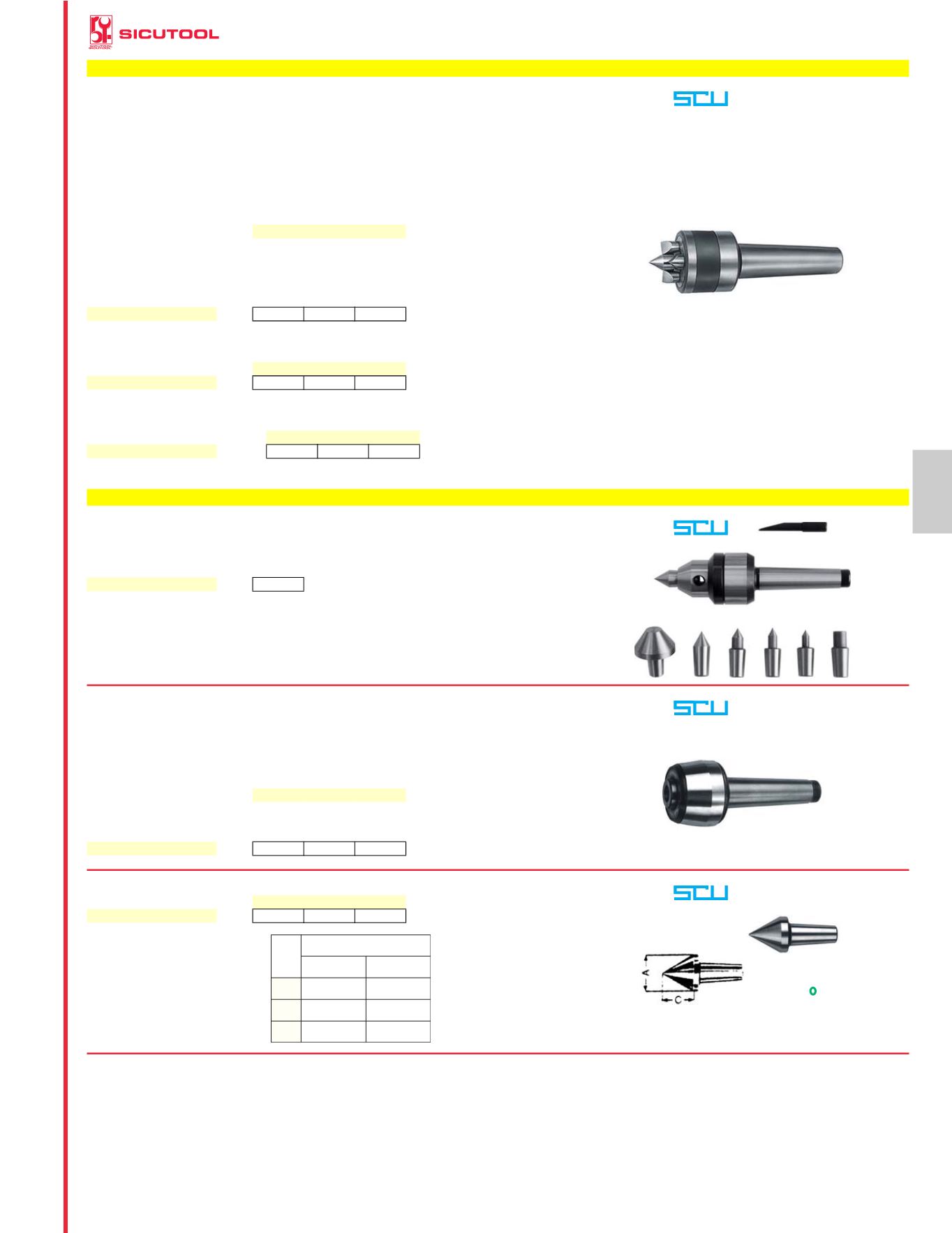

FACE DRIVING CENTERS
463
6
Prices in EURO - VAT not included
FACE DRIVING CENTERS
1583
Prod. SCU
In high resistance steel. Driving wedges in special steel (hardness HRc 61-63).
Hardened and ground spindle. Liquid-proof, slag-proof.
Provided with three driving pins, interchangeable driving wedges suited to possible front
irregularities of the item to be processed. Screw to adjust the driving wedge pression.
Patented equalization system assures a uniform pression on driving wedges and allows to process
items whose head is not aligned with the rotation axis.
Independent central centre, longwise guided.
Tailstock with driving discs/wedges.
Size
2
2A
3
Drive
C.M.
2
2
3
Grip capacity min/max
mm 6-20 20-40 20-40
Rotating tip Ø
mm 10
10
10
Body Ø
mm 44
44
44
Length
mm 130
132
147
1583
Each 388,00 419,00 434,00
Product running out of stock.
vuoto
Central pins for Art. 1583.
Size
2
2A
3
O1583B
Each 41,90 36,10 36,10
vuoto
Product running out of stock.
Set of driving wedges for Art. 1583.
Size
2
2A
3
O1583C
Per set
25,20 28,70 28,70
vuoto
Product running out of stock.
FACEDRIVINGCENTERS
REVOLVING CENTERS WITH INTERCHANGEABLE INSERTS
1584E
new
Prod. SCU
Light. Made of hardened and ground steel.
Complete with interchangeable inserts and extractor for the inserts.
CM connection. 2. Length of rotating body only 35 mm. Total length without inserts 130 mm.
1584E
Each 262,00
vuoto
REVOLVINGCENTERSWITH INTERCHANGEABLE INSERTS
1584G
Prod. SCU - Röhm
High precision model. Housing in high-resistance steel.
Spindle in special steel, hardened and ground.
Triple-range of ball bearings and guide rollers, liquid-proof, slag-proof.
Interchangeable points at 60°, 90°, truncated and hollow cone. Conic drive, hardened and ground.
Only revolving centre without inserts.
Drive
C.M.
2
3
4
Length of rotating body
only
mm 45
48
67
Max axial load
Kg
40
130
250
1584G
Each 417,00 408,00 577,00
vuoto
REVOLVINGCENTERSWITH INTERCHANGEABLE INSERTS
1584GA
60
Point at 60° for Art. 1584 G.
For tailstock drive
C.M.
2
3
4
1584GA
Each 50,30 59,60 69,90
vuoto
1584GA
2
3
4
A
C
16
13
20
17
28
23,5
