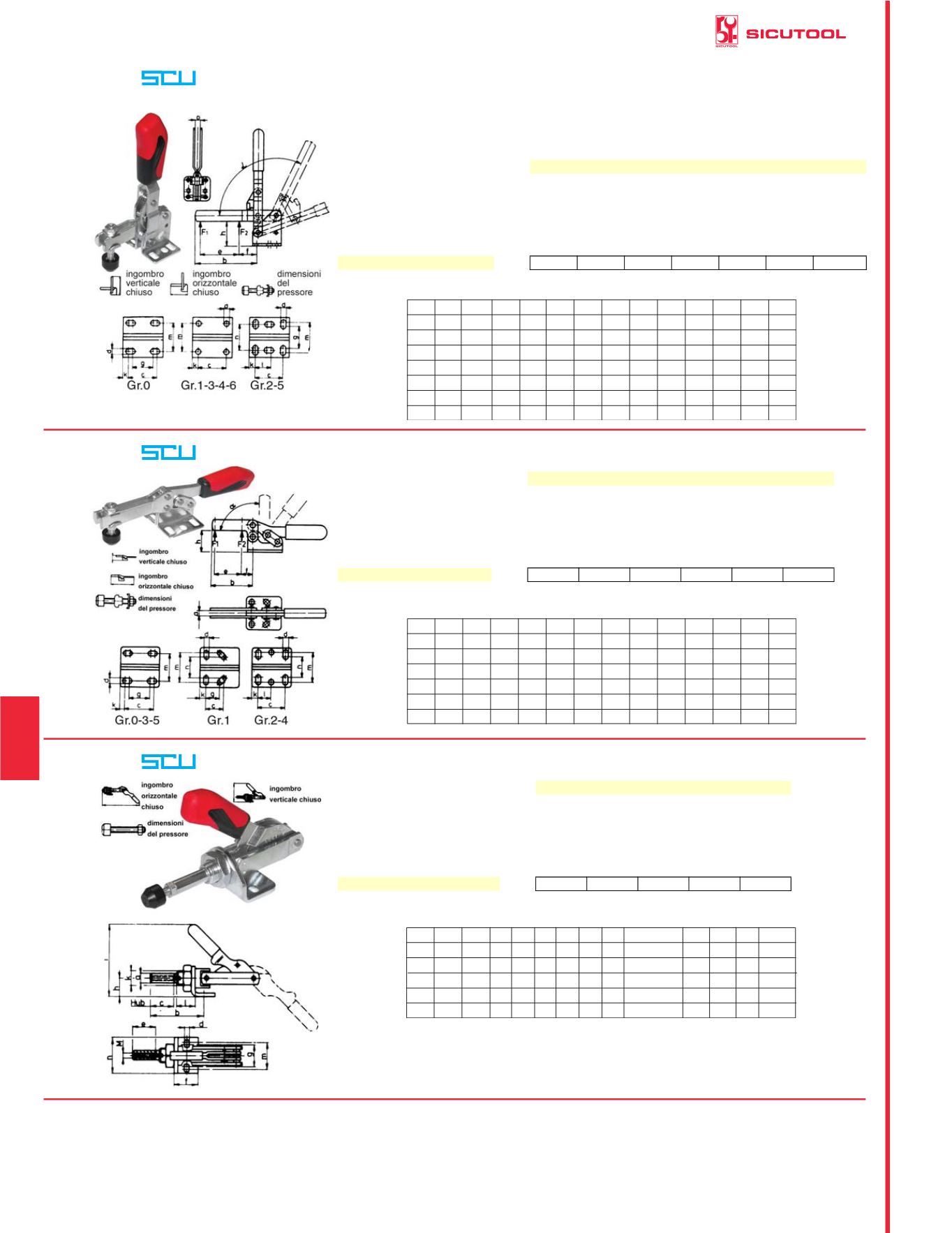

CLAMPING DEVICES
682
9
Prices in EURO - VAT not included
2832GA
Prod. SCU - Orig. AMF
High quality safe clamping devices. Double lever operated to avoid release during clamping. In
galvanized steel, with oil-proof handle, hardened and ground support sockets.
Complete with screw and shoe in sturdy hard rubber. Min. and max. holding forces (F1-F2)
expressed in Newton (N).
Vertical type, base plane.
Size
0
1
2
3
4
5
6
Force min F1
N 500 800 1000 1400 2000 3000 3500
Max. force F2
N 700 1100 1200 2500 3000 5000 5500
Vertical dimensions as closed mm 90
105 144 206 230 300
347
Horizontal dimensions as closed mm 49
60
82
112 140 195
230
Presser dimensions
mm M 4x25 M 5x30 M 6x35 M 8x45 M 8x65 M 12x80 M 12x110
Weight
grams 60
105 175 410 630 1480 2200
2832GA
Each 25,70 27,60 36,80 42,60 55,70 93,70 122,00
vuoto
DIMENSIONS:(mm)
Gr. a b c d e f
g h k l
m n
α
0 4 31 13,5 4,5 16 10 8,5 17,5 4,3 -
23 - 95
°
1 5 38 16 4,5 19 14 - 20 5,5 -
24 - 95
°
2 6 51 20 5,5 25 20 24 25 6 12,5 30 27 105
°
3 8 80 20 7,1 43 27 - 34 7,5 -
32 - 105
°
4 10 100 32 8,5 61 30 - 42 13 -
45 - 105
°
5 14 142 45 8,5 88 40 45 55 9,5 31,5 50 45 115
°
6 14 165 50 13 90 55 - 81 24,5 -
70 - 105
°
CLAMPINGDEVICES
2832GF
Product description as Art. 2832GA
Horizontal type, base plane.
Size
0
1
2
3
4
5
Force min F1
N 250
800
1000 1800 2000 3000
Max. force F2
N 400
1100 1200 2500 3000 5000
Vertical dimensions as closed mm 23
30
44
48
74
71
Horizontal dimensions as closed mm 86
130
176
221
293
338
Presser dimensions
mm M 4x25 M 5x30 M 6x35 M 8x45 M 8x65 M 8x65
Weight
grams 35
105
185
320
700
1080
2832GF
Each 21,80 31,60 34,20 43,30 56,10 89,60
vuoto
DIMENSIONS:(mm)
Gr. a b c d e f
g h k l
m n
α
0 4 26 16 4,6 11 10 11,2 15 5 - 16 - 90
°
1 5 40 15 4,8 26 11 13 20 5,5 - 22 18 90
°
2 6 64 26 5,5 35 22 - 25 6 12,7 29 20 90
°
3 8 72 25,5 6,5 44 22 - 33 7 - 29 23 90
°
4 10 111 41 8,5 66 34 - 44 8 20,5 43 29 90
°
5 10 121 41,5 8,5 78 30 41,5 46 12,5 - 41,5 - 90
°
CLAMPINGDEVICES
2832GL
Product description as Art. 2832GA
Thrust and traction type, base plane.
Size
0
1
2
3
5
Force min F1
N 800
1000 2000 2500 4500
Max. force F2
N 800
1000 2000 2500 4500
Vertical dimensions as closed (i)
mm 46
60
95
96
131
Horizontal dimensions as closed mm 96
121
165
190
239
Presser dimensions
mm M 4x20 M 4x20 M 6x25 M 8x35 M 12x50
Weight
grams 65
125
325
445
880
2832GL
Each 48,40 49,70 54,60 62,10 96,20
vuoto
DIMENSIONS:(mm)
Gr. Ø a b c d e f
g h
k
l
m n M
0 6,5 33 16 4,5 13 16 16 12 M 10x1 10 16 25 M 4
1 8 44,5 20 4,5 20 20 16 15 M 12x1,5 16 19 30 M 4
3 12 69 32 6,5 30 30 30 25 M 20x1,5 22 42 60 M 8
5 16 81,5 40 8,5 50 35 30 30 M 24x1,5 25 45 65 M12
2 10 57,5 25 5,5 25
-
28 20 16x1,5 M 19 36 50 M 6
