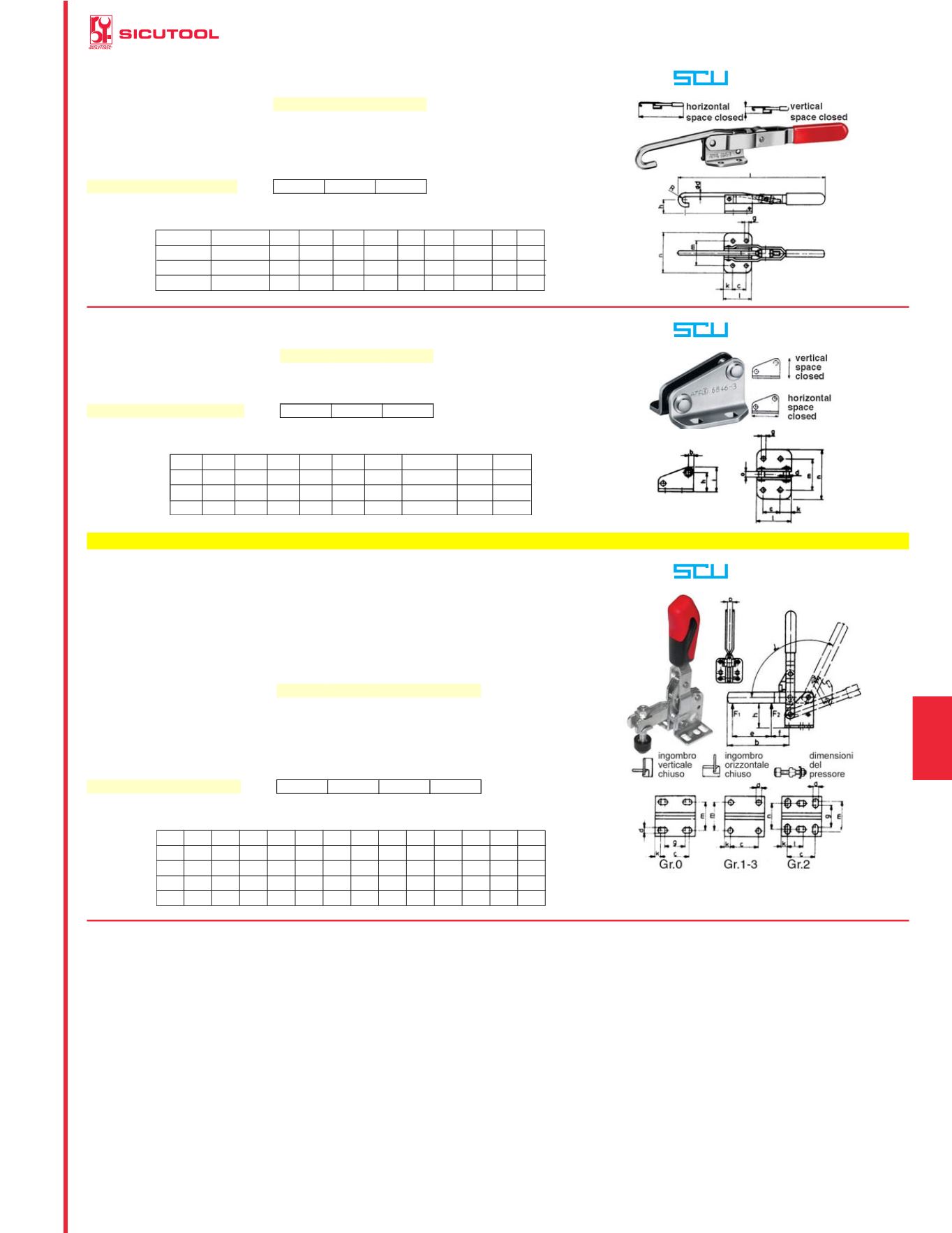

CLAMPING DEVICES
683
9
Prices in EURO - VAT not included
2832GP
Product description as Art. 2832GA
Threaded rod type, base plane.
Size
1
3
5
Max. force F2
N 2000 3000 5000
Tie rod stroke
mm 5
12
12
Vertical dimensions as closed mm 33
36
70
Horiz. dimensions as closed (i) mm 148
242
320
Weight
grams 100
270
850
2832GP
Each 45,20 50,30 81,40
vuoto
DIMENSIONS:(mm)
Gr.
b
c d g h k l
m n R
3
67 - 79 19 7,1 5,5 23 13 40 32-35 46 5,5
5
58 - 70 29 12 11 49 13 55 60 88 8
1
36 - 41 19 5,3 4,5 22,5 6 31 28 41 4,5
CLAMPINGDEVICES
2832GS
Product description as Art. 2832GA
Supports for Art. 2832 GP.
Size
1
3
5
Vertical dimensions as closed (i) mm 29
29
61
Horiz. dimensions as closed (l)
mm 31
40
55
Weight
grams 40
70
320
2832GS
Each 16,90 19,90 25,80
vuoto
Gr.
b c d g h k
m n o
3 6 19 10 5,5 23 13 32-35 46 10,8
5 12 29 15 11 49 13
60
89 13,7
DIMENSIONS:(mm)
1 6 19 8 4,5 22,5 6
28
41 6,8
CLAMPINGDEVICES
CLAMPING DEVICES IN STAINLESS STEEL
2834GA
INOX
Prod. SCU - Orig. AMF
High quality safe clamping devices. Double lever operated to avoid release during clamping. In
galvanized steel, with oil-proof handle, hardened and ground support sockets.Complete with
screw and shoe in sturdy hard rubber. Suitable for chemical and food industries, where special
hygienic conditions are required and for critical applications due to unfavorable climatic conditions
where particularly aggressive coolants are used. Min. and max. holding forces (F1-F2) expressed
in Newton (N).
Vertical type, base plane.
Size
0
1
2
3
Force min F1
N 500
800
1000 1400
Max. force F2
N 700
1100 1200 2500
Vertical dimensions as closed mm 90
105
144
206
Horizontal dimensions as closed mm 49
60
82
112
Presser dimensions
mm M 4x25 M 5x30 M 6x35 M 8x45
Weight
grams 60
105
175
335
2834GA
Each 47,20 51,80 66,60 92,90
vuoto
DIMENSIONS:(mm)
Gr. a b c d e f
g h k l
m n
α
0 4 31 13,5 4,5 16 10 8,5 17,5 4,3 -
23 - 95
°
1 5 38 16 4,5 19 14 - 20 5,5 -
24 - 95
°
2 6 51 20 5,5 25 20 24 25 6 12,5 30 27 105
°
3 8 80 20 7,1 43 27 - 35 7,5 -
32 - 105
°
CLAMPINGDEVICES INSTAINLESSSTEEL
