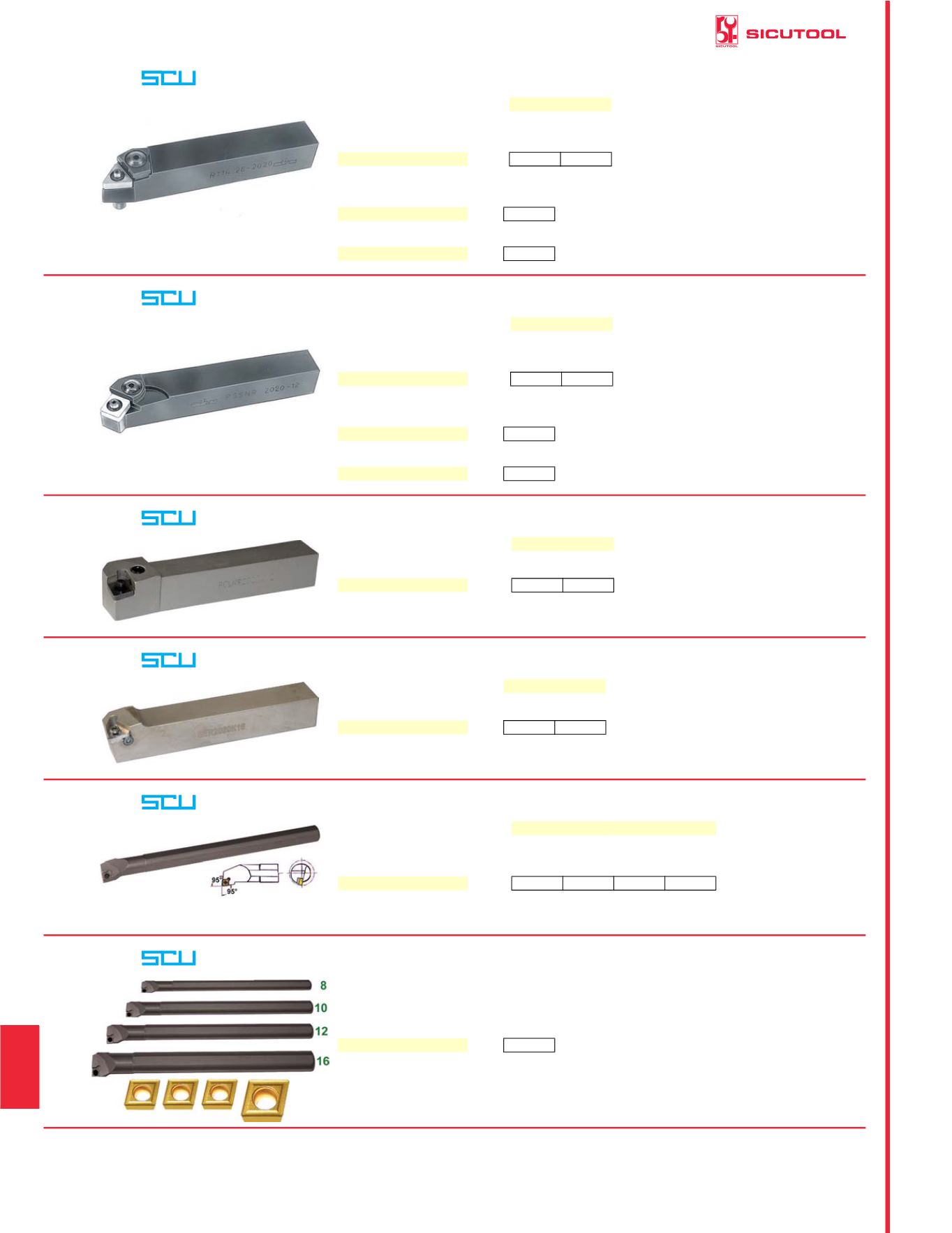

1284 / 1378
1284
TOOL BIT HOLDERS, MECHANICAL FIXING
1284
13
Prices in EURO - VAT not included
9804
Product description as Art. 9800
Right-hand, external use.
Square stem side
mm
20
25
Cutting angle
degrees 75
75
Overall length
mm 125
150
Head width and length
mm 17x28 22x28
9804
Each 131,00 148,00
For tool bits see Art. 9820 – 9822 – 9824.
vuoto
Spare support plate (for size 20 and 25mm), for Art.9804.
O9804A
Each 14,30
vuoto
Spare plate pin (for size 20 and 25mm), for Art. 9804.
O9804B
Each 11,70
vuoto
TOOLBITHOLDERS,MECHANICALFIXING
9806
Product description as Art. 9800
Right-hand, external use.
Square stem side
mm
20
25
Cutting angle
degrees 45
45
Overall length
mm 125
150
Head width and length
mm 22x25 28x32
9806
Each 131,00 148,00
For tool bits see Art. 9828 – 9830.
vuoto
Spare support plate (for size 20 and 25mm), for Art.9806.
O9806A
Each 19,00
vuoto
Spare plate pin (for size 20 and 25mm), for Art. 9806.
O9806B
Each 10,10
vuoto
TOOLBITHOLDERS,MECHANICALFIXING
9808
Product description as Art. 9800
Right-hand, external use.
Square stem side
mm
20
25
Cutting angle
degrees 95
95
Overall length
mm 125
150
9808
Each 63,30 71,60
For plates see Art. 9832.
Brackets and spare screws can be supplied on request.
vuoto
TOOLBITHOLDERS,MECHANICALFIXING
9809
Steel, threaded screw fastening suitable for screw threads. Arms do not include padding.
Right-hand, external use. ISO THREAD.
Square stem side
mm
20
25
Pitch
mm 1,5
1,5
Overall length
mm 125
150
9809
Each 83,70 101,00
For plates see Art. 9833 L.
Underplates and spare screws can be supplied on request.
vuoto
TOOLBITHOLDERS,MECHANICALFIXING
9809E
Steel, threaded screw fastening suitable for rotating and copying. Arms do not include padding.
Right-hand, internal use.
Flat/round stem Ø
mm
8
10
12
16
Cutting angle
degrees 95
95
95
95
Overall length
mm 125
140
160
180
Min. bore Ø
mm 11
15
17
22
9809E
Each 72,60 72,60 72,60 81,30
For plates see Art. 9833 P.
Spare screws can be supplied on request.
vuoto
TOOLBITHOLDERS,MECHANICALFIXING
9809F
Assortment of 8 mechanical tool attachments.
Comprises:
1 pcs. per type Art. 9809 E 8 - 10 - 12 - 16
3 pcs. Art. 9833 P 8
1 pcs. Art. 9833 P 16
In cardboard box.
9809F
Each 336,14
vuoto
