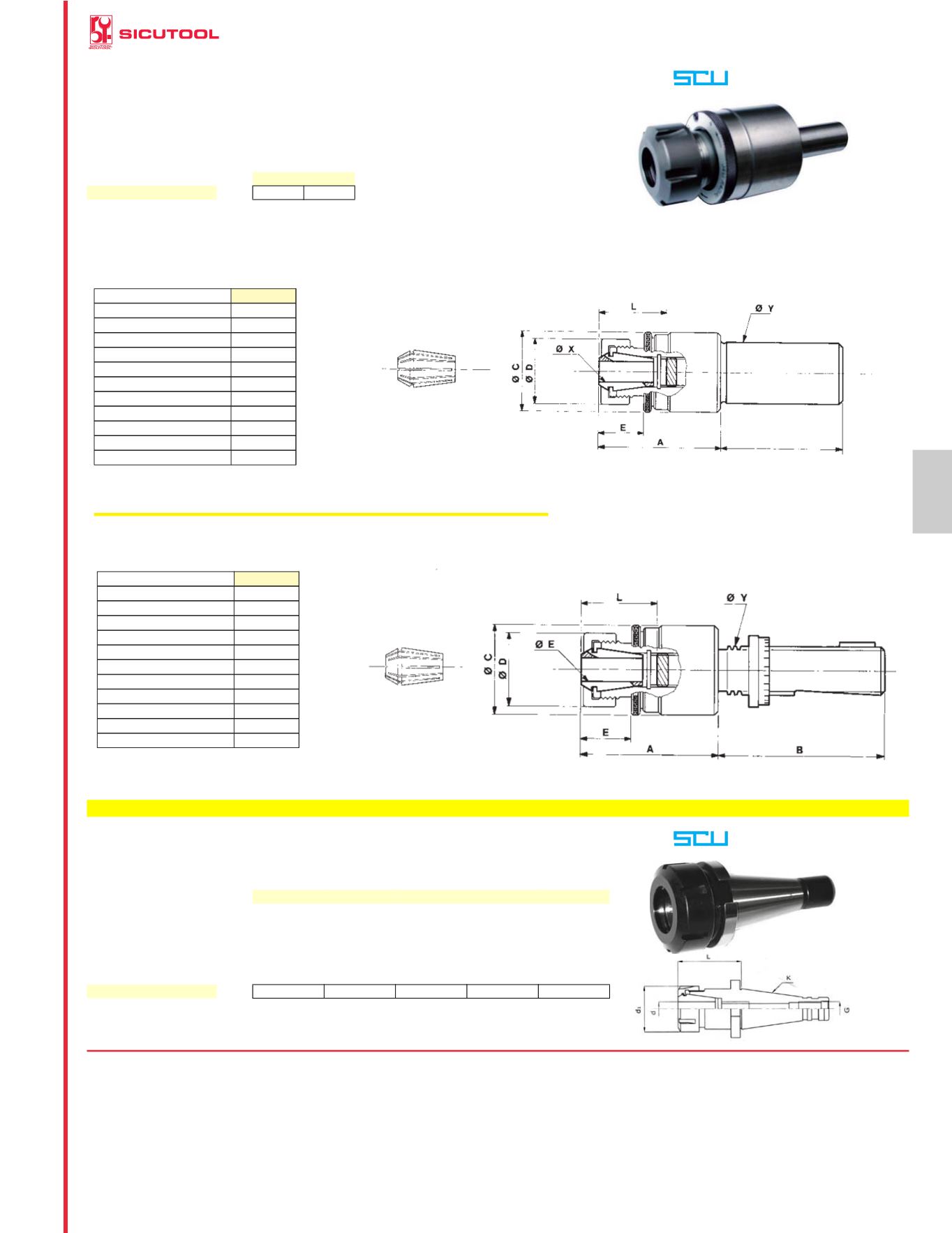

FLOATING CHUCKS
449
6
Prices in EURO - VAT not included
1559GB
Compact type.
Suitable for pre-hole working operations. For better finishing and longer tool life. To be used with
standard ER32 DIN 6499/ISO 15488 collets. Adjustable radial correction. Angular movement, not
adjustable and depending from radial adjustment. To be used together compensated tapping
collets Art. 1562 GL-M-PA for high-performance tapping.
Radial correction from 0mm to 1.5mm.
Angular correction from 0° to 1°.
Type
2
4
1559GB
Each 1.070,00 1.390,00
Hook spanners for DIN 6499 locking collars see Art. 840 GE-L.
Product running out of stock.
vuoto
FLOATINGCHUCKS
DIN 2080 ER PINCERS HOLDER CHUCKS WITH LOCKING COLLAR
Tipo
4
Art. fornitore
C65C20Tr
X = Per pinze ER 32
Att.trapezoidale Ø mmY 20
Misura A mm 94
Misura B mm 88
Misura C mm 64.5
Misura D mm 50
Misura E
mm 33
Misura L min.
mm 44
Misura L max.
mm 66
Peso gr 1900
Tipo
2
Art. fornitore
C65C20C
X = Per pinze ER 32
Att. cilindr. est. Ø mmY 20
Misura A mm 94
Misura B mm 50
Misura C mm 64.5
Misura D mm 50
Misura E
mm 33
Misura L min.
mm 44
Misura L max.
mm 66
Peso gr 2070
With cylindrical machine shank - cylindrical tool shank through ER pinchers.
With trapezoidal machine shank (DIN 6327) - cylindrical tool shank.
With regulation collar of the trapezoidal screw.
1560GA
Prod. SCU
For ER-DIN 6499/ISO 15488 wide opening collets. High-precision, max centring of tools such as
milling cutters, drill bits, countersinks, reamers, boring bars, with the highest tuning moments,
DIN 2080 shank, internally threaded end.
Type
0
1
2
3
4
Shape/ thread K/G
ISO 40 M16 ISO 30 M12 ISO 40 M16 ISO 40 M16 ISO 50 M24
Tightening capacity Ø d mm 1-10
2-20
2-20
3-25
3-30
Height L
mm 70
50
50
42
58
Height d1
mm 32
50
50
63
63
For pliers Art.
1560 GS-
1561GC
1560 GZ-
1561 GN
1560 GZ-
1561 GN
1561 GR 1561 GR
1560GA
Each 291,00
140,00
107,00
107,00
206,00
Hook spanners for DIN 6499 locking collars see Art. 840 GE-L.
