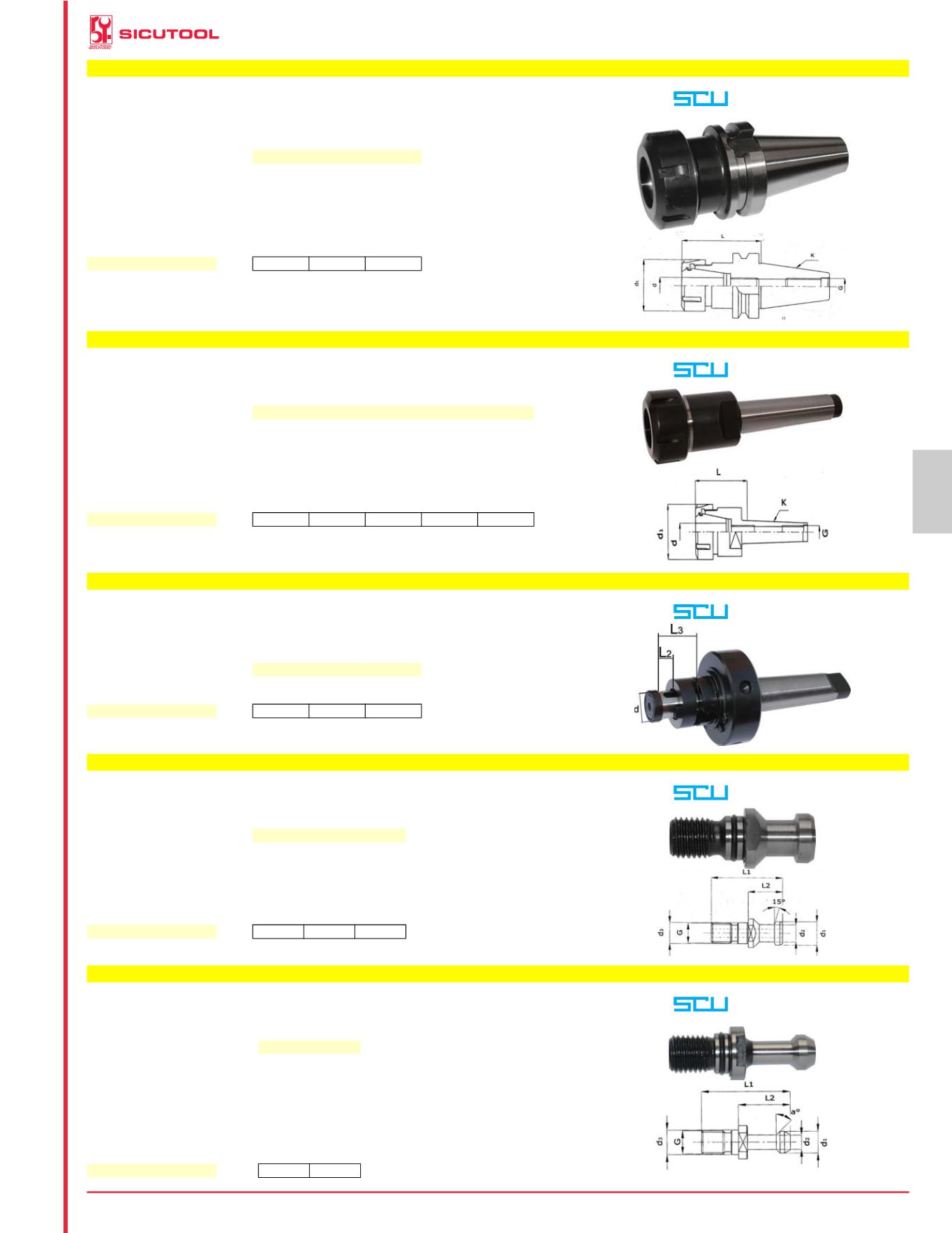

MAS-BT ER PINCERS HOLDER CHUCKS WITH LOCKING COLLARS
453
6
Prices in EURO - VAT not included
MAS-BT ER PINCERS HOLDER CHUCKS WITH LOCKING COLLARS
1560GC
Prod. SCU
For ER-DIN 6499/ISO 15488 wide opening collets. High-precision, max centring of tools such as
milling cutters, drill bits, countersinks, reamers, boring bars, with the highest turning moments.
MAS-BT, BT 40 shank, internally threaded end.
Type
0
1
2
Shape/ thread K/G
BT 40
M16
BT 40
M16
BT 40
M16
Tightening capacity Ø d mm 1-10
2-20
3-25
Height L
mm 70
70
80
Height d1
mm 32
50
63
For pliers Art.
1560 GS-
1561 GC
1560 GZ-
1561 GN
1561 GR
1560GC
Each 133,00 103,00 127,00
Hook spanners for DIN 6499 locking collars see Art. 840 GE-L.
vuoto
MAS-BTERPINCERSHOLDERCHUCKSWITHLOCKINGCOLLARS
C.M. ER PINCERS HOLDER CHUCKS WITH LOCKING COLLARS
1560GD
Prod. SCU
Product description as Art. 1560GC
Morse Taper shank, internally threaded end.
Type
1
2
3
4
5
Shape/ thread K/G
C.M. 2
M10
C.M. 2
M10
C.M. 3
M12
C.M. 3
M12
C.M. 3
M12
Tightening capacity Ø d mm 2-13
2-16
2-13
2-16
2-20
Height L
mm 50
54
50
53
70
Height d1
mm 35
42
28
42
50
For pliers Art.
1560 GT-
1561 GF
1560 GV-
1561 GL
1560 GT-
1561 GF
1560 GV-
1561 GL
1560 GZ-
1561 GN
1560GD
Each 160,00 171,00 191,00 188,00 188,00
Hook spanners for DIN 6499 locking collars see Art. 840 GE-L.
vuoto
C.M.ERPINCERSHOLDERCHUCKSWITH LOCKINGCOLLARS
CUTTERS HOLDER MORSE TAPER CHUCK, FIXED DRAGGING
1560GE
Prod. SCU
For milling cutters with through-hole connection. High-precision for cutter centring with very high
turning moments.
Morse taper shank 4, with tang.
d mills bore Ø
mm
16
22
27
Height L 2
mm 17
19
21
Height L 3
mm 27
31
33
1560GE
Each 201,00 201,00 212,00
vuoto
CUTTERSHOLDERMORSETAPERCHUCK,FIXEDDRAGGING
TULLSTUDS FOR CHUCKS WITH SHANK DIN 69871/A
1560GEA
Prod. SCU
In hardened steel. High-precision. Holed for internal lubrication.
For chucks Art. 1560 GB-1560 GBC-1560 GBE-1560 GBF-1560 GBL-1560 GBM-1560 GBP.
Thread G
M.
12
16
24
Height d1
mm 12
19
28
Height d2
mm 8
14
21
Height d3
mm 13
17
25
Height L1
mm 44
54
74
Height L2
mm 24
26
34
For cones Gr.
ISO 30 ISO 40 ISO 50
1560GEA
Each 19,90 19,90 19,90
vuoto
TULLSTUDSFORCHUCKSWITHSHANKDIN69871/A
TULLSTUDS FOR CHUCKS WITH SHANK MAS-BT
1560GEB
Prod. SCU
Product description as Art. 1560GEA
For chucks Art. 1560 GC.
Type
16
16A
Thread G
M.
16
16
Angle a°
degrees 45
30
Height d1
mm 15
15
Height d2
mm 10
10
Height d3
mm 17
17
Height L1
mm 60
60
Height L2
mm 35
35
For cones Gr.
BT 40 BT 40
1560GEB
Each 18,30 18,30
vuoto
TULLSTUDSFORCHUCKSWITHSHANKMAS-BT
