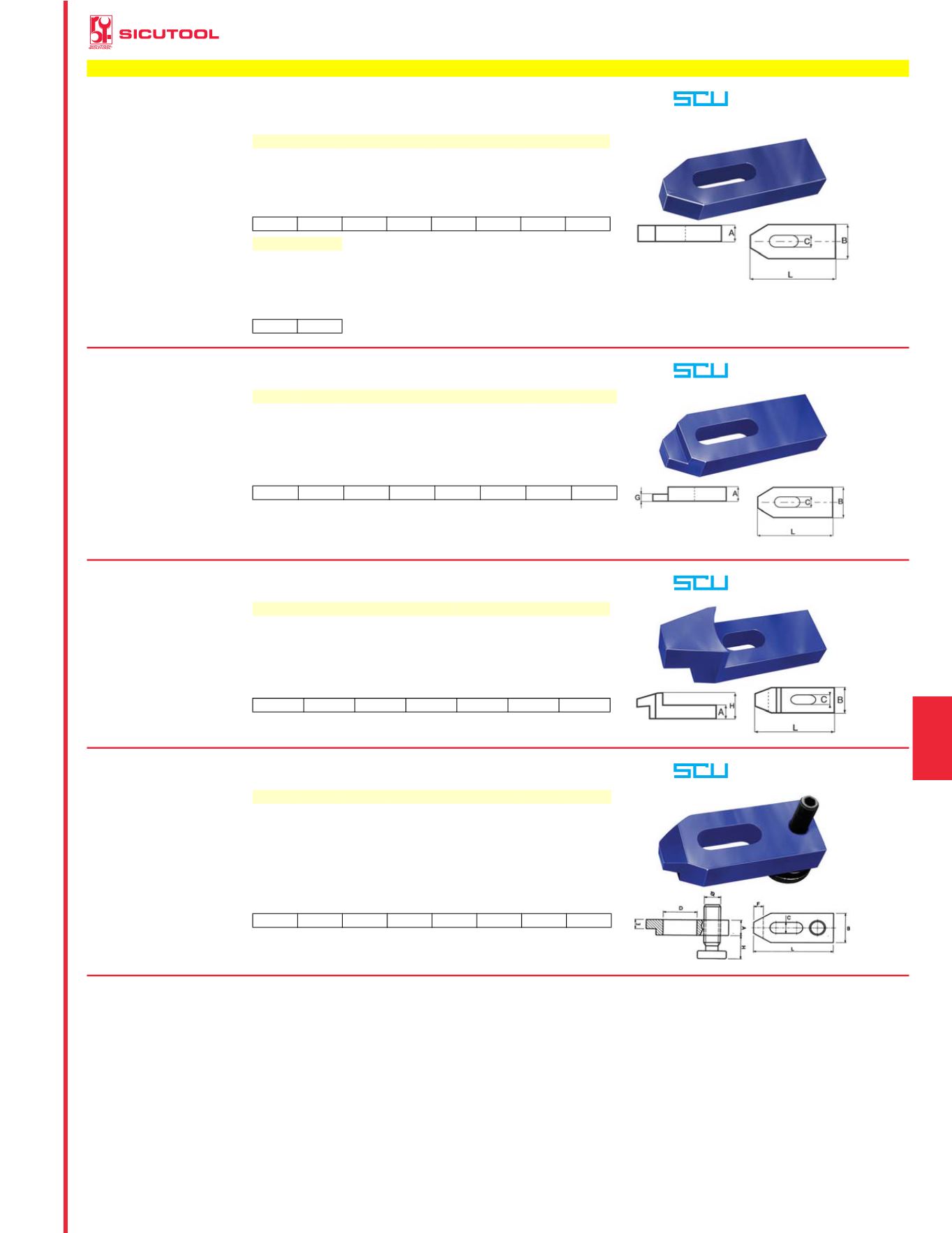

CLAMPING DEVICES
675
9
Prices in EURO - VAT not included
CLAMPING DEVICES
2822A
2822B
2822C
2822E
2822H
2822L
2822P
2822R
2822S
2822T
Prod. SCU
In special steel, hardened. Enamelled.
Simple construction - DIN 6314.
Art.
2822A 2822B 2822C 2822E 2822H 2822L 2822P 2822R
Bolts thread
M.
8
10 12-14 12-14 16-18 16-18 20-22 20-22
Groove (C) width
mm 9
11
14
14
18
18
22
22
Length (L)
mm 60
80
100 125 125 160 160 200
Thickness (A)
mm 12
15
20
20
25
25
30
30
Width (B)
mm 25
30
40
40
50
50
60
60
Each 7,24 7,94 11,10 13,00 17,40 20,90 26,80 33,50
Art.
2822S 2822T
Bolts thread
M.
24
24
Groove (C) width
mm 26
26
Length (L)
mm 200 250
Thickness (A)
mm 30
30
Width (B)
mm 70
70
Each 38,50 48,50
vuoto
CLAMPINGDEVICES
2823A
2823B
2823C
2823E
2823F
2823L
2823P
2823R
Product description as Art. 2822A
Simple construction, thin extremity.
Art.
2823A 2823B 2823C 2823E 2823F 2823L 2823P 2823R
Bolts thread
M.
8
10 12-14 12-14 16-18 16-18 20-22 20-22
Groove (C) width
mm 9
11
14
14
18
18
22
22
Length (L)
mm 60
80
100 125 125 160 160 200
Thickness (A)
mm 12
15
20
20
25
25
30
30
Width (B)
mm 25
30
40
40
50
50
60
60
End (G) thickness
mm 7
9
12
12
15
15
20
20
Each 11,80 13,40 16,80 18,40 21,80 23,50 31,80 35,20
vuoto
CLAMPINGDEVICES
2824A
2824B
2824C
2824D
2824E
2824F
2824L
Product description as Art. 2822A
Simple construction, bent extremity - DIN 6316.
Art.
2824A 2824B 2824C 2824D 2824E 2824F 2824L
Bolts thread
M.
12-14 16-18 16-18 20-22 20-22
24
24
Groove (C) width
mm 14
18
18
22
22
26
26
Length (L)
mm 125
160
200
160
200
200
250
Thickness (A)
mm 20
25
25
30
30
35
35
Width (B)
mm 40
50
50
60
60
70
70
Overall height (H)
mm 40
50
50
60
60
70
70
Each 21,60 34,50 55,20 52,40 59,90 82,10 95,40
vuoto
CLAMPINGDEVICES
2824M
2824P
2824Q
new
2824R
2824S
2824T
2824V
2824Z
Product description as Art. 2822A
Simple construction, thin extremity and adjustable screw - DIN 6314AT.
Art.
2824M 2824P 2824Q 2824R 2824S 2824T 2824V 2824Z
Bolts thread
M.
12-14 12-14 16-18 16-18 20-22 20-22 24
24
Groove (C) width
mm 15
15
19
19
23
23
27
27
Length (L)
mm 125 160 160 200 160 200 200 250
Thickness (A)
mm 20
20
25
25
30
30
40
40
Width (B)
mm 40
40
50
50
60
60
70
70
End (E) thickness
mm 12
12
15
15
15
15
25
25
Adjustable height (H)
mm 15-50 15-50 15-70 15-70 15-70 15-70 15-70 15-70
Screw diameter
mm 20x4 20x4 30x6 30x6 30x6 30x6 30x6 30x6
Each 28,50 30,10 40,20 43,50 46,90 51,90 61,90 68,60
