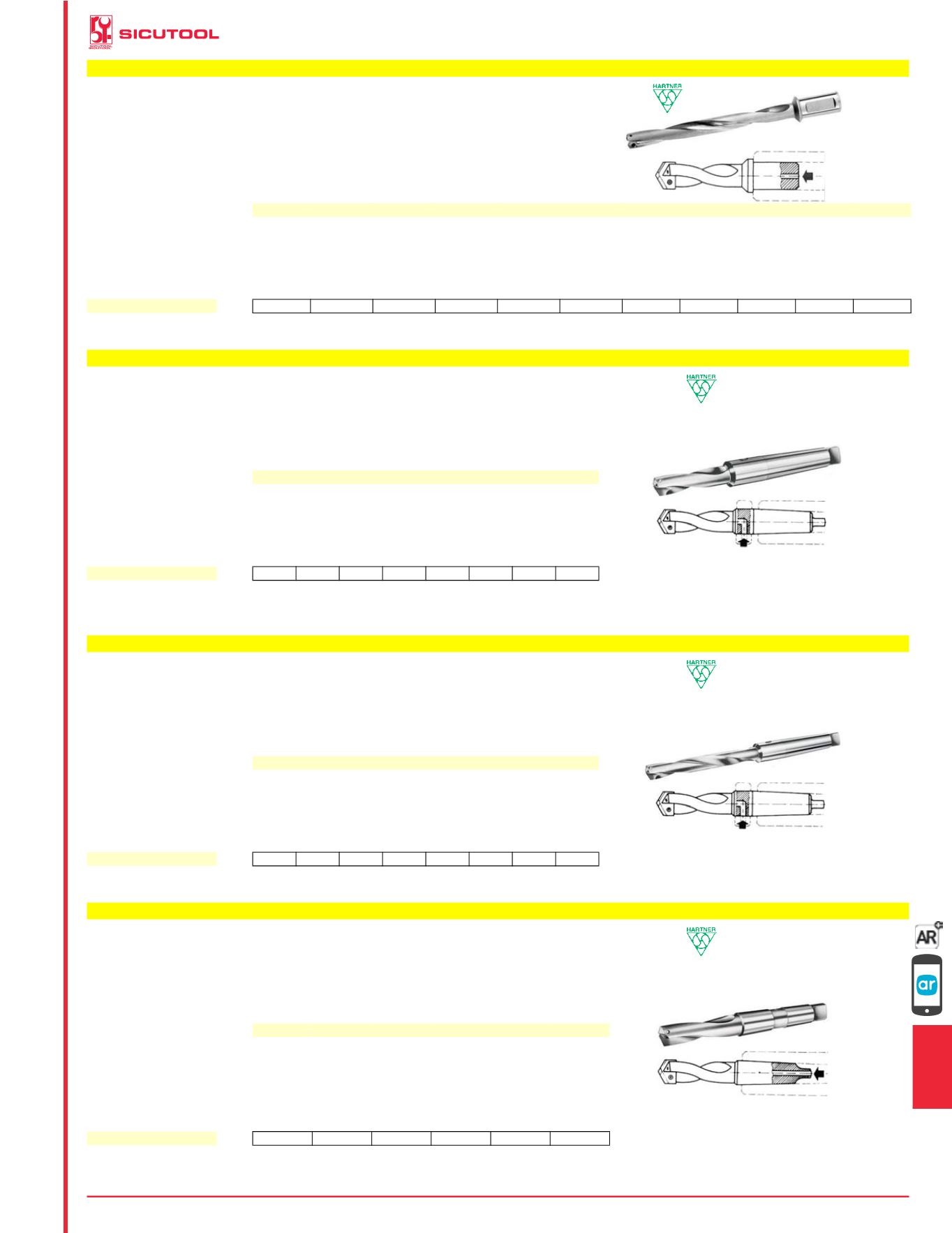

MULTIPLEX SHANK HOLDERS, X-LONG TYPE
1145
13
Prices in EURO - VAT not included
MULTIPLEX SHANK HOLDERS, X-LONG TYPE
8625GP
Orig. Hartner - Art. 86624
X-LONG type (for 7xD holes).
Made of steel, forced lubrication through internal cooling channels.
Rear feeding. Spiral flute.
CYLINDRICAL shank. RIGHT-HAND rotation.
With 2 screws.
Size
1
2
3
4
5
6
7
8
9
10
11
Drive Ø
mm 20
20
20
20
20
20
32
32
32
40
40
For plates Ø
mm 9,7-11,7 11,71-13,4 13,41-16,4 16,41-18,9 18,91-22,4 22,41-25,4 25,41-29 29,01-35 35,01-45 45,01-55 55,01-65
Overall length
mm 180
190
210
220
250
250
320
320
380
390
390
Helix length
mm 123
134
155
168
199
201
246
250
310
310
310
TORX screws size
M.
2x4
2x4
2,5x5
2,5x7
3x6
3x8
3,5x10 3,5x10
4x15
4x15
4x15
For plates thickness
mm 2,5
2,5
3,5
3,5
4
4
5
5
7
7
7
8625GP
Each 401,00 401,00
452,00
452,00
452,00
452,00 520,00 614,00 701,00 798,00 863,00
For tool bits see Art. 8630 GT to 8633 G.
vuoto
MULTIPLEXSHANKHOLDERS,X-LONG TYPE
MULTIPLEX SHANK HOLDERS, SHORT TYPE
8627G
Orig. Hartner - Art. 86670
SHORT type.
Made of steel, forced lubrication through internal cooling channels.
Feeding through coolant ring. Spiral flute.
Morse Taper shank. RIGHT-HAND rotation.
With 2 screws.
Size
1
2
3
4
5
6
7
8
For plates Ø
mm 25-29 29-35 35-45 45-55 55-65 65-78 78-90 90-102
Drive
C.M.
4
4
4
4
4
5
5
5
Overall length
mm 279 279 324 324 324 436 436 436
Helix length
mm 108 108 152 152 152 216 216 216
TORX screws size
M.
3,5x10 3,5x10 4x15 4x15 4x15 5x20 5x20 5x20
For plates thickness
mm 5
5
7
7
7
9
9
9
8627G
Each 499,00 528,00 701,00 723,00 798,00 975,00 1.200,00 1.380,00
For tool bits see from Art. 8630 GT to 8633 G (Art. 8627 G - 8627 GLxGr. 6-7-8: straight spiral flute).
Size 7 available only while stocks last.
vuoto
MULTIPLEXSHANKHOLDERS,SHORTTYPE
MULTIPLEX SHANK HOLDERS, LONG TYPE
8627GL
Orig. Hartner - Art. 86680
LONG type.
Made of steel, forced lubrication through internal cooling channels.
Feeding through coolant ring. Spiral flute.
Morse Taper shank. RIGHT-HAND rotation.
With 2 screws.
Size
1
2
3
4
5
6
7
8
For plates Ø
mm 25-29 29-35 35-45 45-55 55-65 65-78 78-90 90-102
Drive
C.M.
4
4
4
4
4
5
5
5
Overall length
mm 379 379 429 429 429 536 536 536
Helix length
mm 208 208 257 257 257 316 316 316
TORX screws size
M.
3,5x10 3,5x10 4x15 4x15 4x15 5x20 5x20 5x20
For plates thickness
mm 5
5
7
7
7
9
9
9
8627GL
Each 535,00 614,00 723,00 788,00 827,00 1.040,00 1.270,00 1.490,00
For tool bits see Art. 8630 GT to 8633 G (Art. 8627 G - 8627 GlxSize 6-7-8: straight spiral flute).
vuoto
MULTIPLEXSHANKHOLDERS, LONGTYPE
MULTIPLEX SHANK HOLDERS, SHORT TYPE
8628G
Orig. Hartner - Art. 86630
SHORT type.
Made of steel, forced lubrication through internal cooling channels.
Feeding through aletta di trascinamento. Spiral flute.
Morse Taper shank. RIGHT-HAND rotation.
With 2 screws.
Size
1
2
3
4
5
6
For plates Ø
mm 9,7-11,7 11,71-
13,4
13,41-
16,4
16,41-
18,9
18,91-
22,4
22,41-
25,4
Drive
C.M.
2
2
2
2
3
3
Overall length
mm 139
141
148
150
178
181
Helix length
mm 56
58
63
67
76
80
TORX screws size
M.
2x4
2x4
2,5x5
2,5x7
3x6
3x8
For plates thickness
mm 2,5
2,5
3,5
3,5
4
4
8628G
Each 416,00 416,00 463,00 463,00 492,00 492,00
For tool bits see from Art. 8630 GT to 8633 G.
Sizes 1 and 2 available only while stocks last.
