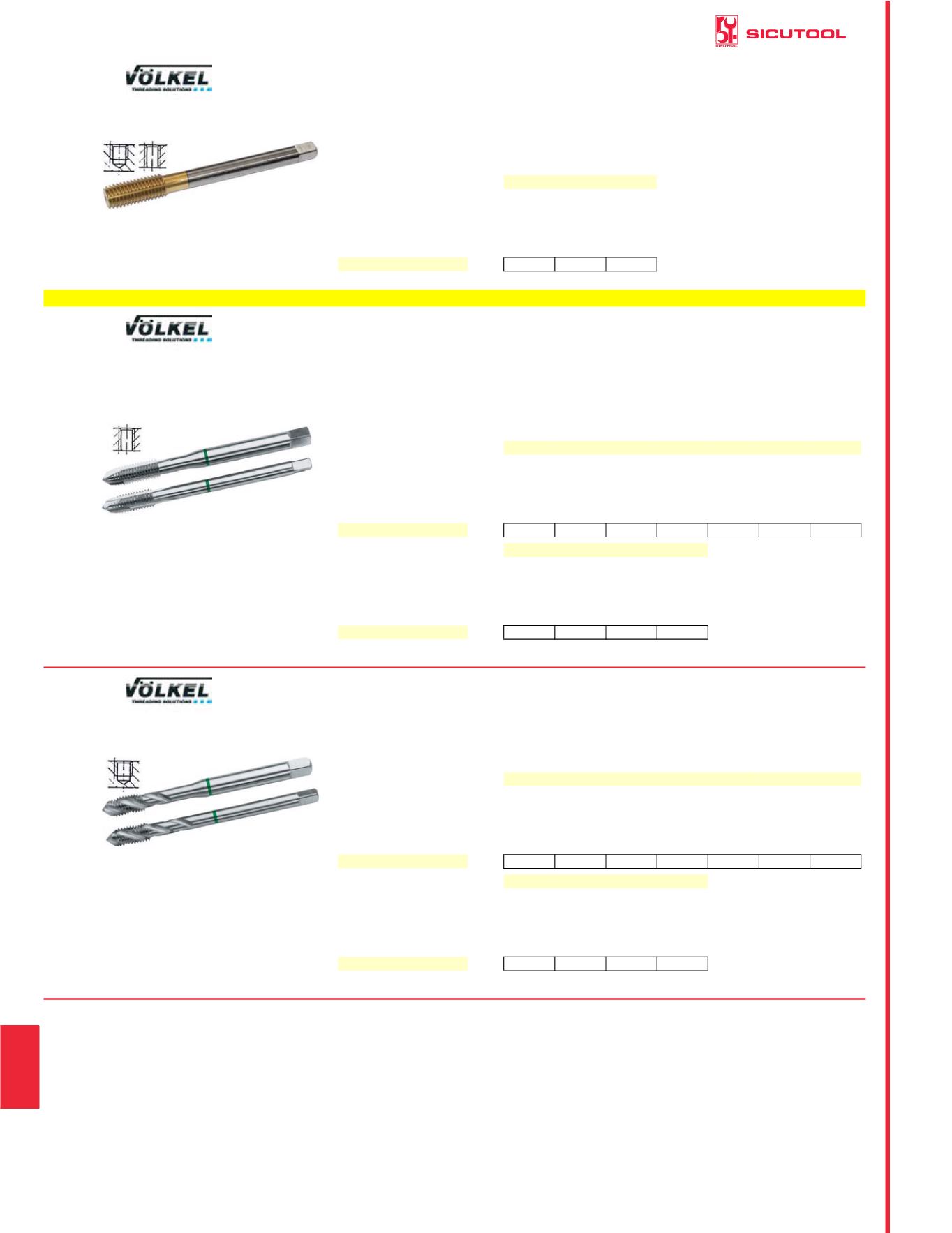

MACHINE TAPS
1226
13
Prices in EURO - VAT not included
9269G
M
HSS-E
TIN
INOX
Orig. Völkel - Art. 356 TIN
THROUGH SHANK
RIGHT-HAND USE
ISO METRIC THREAD according to DIN 13 (DIN 376) – M Coarse Metric – Tolerance ISO2X/6HX.
HSS-E-TIN. Short chamfer, chipless. For aluminium and aluminium alloys, metals up to R 900 N/
mm², stainless steel. Roll taps with coolant ejection channels. Through and blind holes.
TIN coating.
Ø
mm
12
14
16
Pitch
mm 1,75
2
2
Overall length
mm 110
110
110
Thread length
mm 29
30
32
Shank Ø
mm 9
11
12
Shank square
mm 7
9
9
9269G
Each 45,60 62,50 73,30
vuoto
MACHINETAPS
MACHINE TAP WITH COLOURED RINGS
9271GL
M
HSS-E
Orig. Völkel - Art. 353
GREEN collar.
Stainless SUPER-FAST class HSS-E, especially treated for superior performance.
Ground and polished after hardening.
Reinforced shank (12mm, reduced shank), with chamfer suitable for through holes.
Thread: Coarse Metric M - DIN 13 (DIN 371/376).
Right-hand use.
For steel up to 1000 N/sqmm, cast iron, aluminium, copper brass, and other long chip materials.
Ø
mm
3
4
5
6
8
10
12
Pitch
mm 0,5
0,7
0,8
1
1,25
1,5
1,75
Overall length
mm 56
63
70
90
100
110
Thread length
mm 11
13
16
19
22
24
29
Shank Ø
mm 3,5
4,5
6
6
8
10
9
Shank square
mm 2,7
3,4
4,9
4,9
6,2
8
7
9271GL
Each 11,80 11,80 13,10 13,10 15,10 18,00 22,40
Ø
mm
14
16
18
20
Pitch
mm 2
2
2,5
2,5
Overall length
mm 110
110
125
140
Thread length
mm 30
32
34
34
Shank Ø
mm 11
12
14
16
Shank square
mm 9
9
11
12
9271GL
Each 28,80 32,70 45,20 63,20
vuoto
Available on request the same taps, but HSS-E sintered, TIN coated for very high performances.
MACHINETAPWITHCOLOUREDRINGS
9271GP
M
HSS-E
Orig. Völkel - Art. 363
Product description as Art. 9271GL
Reinforced shank (12mm, reduced shank), with 35° spiral flute for deep blind holes.
Thread: Coarse Metric M - DIN 13 (DIN 371/376).
Right-hand use.
For steel up to 1000 N/sqmm, cast iron, aluminium, copper brass, and other long chip materials.
Ø
mm
3
4
5
6
8
10
12
Pitch
mm 0,5
0,7
0,8
1
1,25
1,5
1,75
Overall length
mm 56
63
70
80
90
100
110
Thread length
mm 6
7
8
10
14
16
18
Shank Ø
mm 3,5
4,5
6
6
8
10
9
Shank square
mm 2,7
3,4
4,9
4,9
6,2
8
7
9271GP
Each 15,10 15,10 16,30 16,30 18,90 22,40 27,20
Ø
mm
14
16
18
20
Pitch
mm 2
2
2,5
2,5
Overall length
mm 110
110
125
140
Thread length
mm 20
22
25
25
Shank Ø
mm 11
12
14
16
Shank square
mm 9
9
11
12
9271GP
Each 36,10 41,30 56,50 79,10
vuoto
Available on request the same taps, but HSS-E sintered, TIN coated for very high performances.
