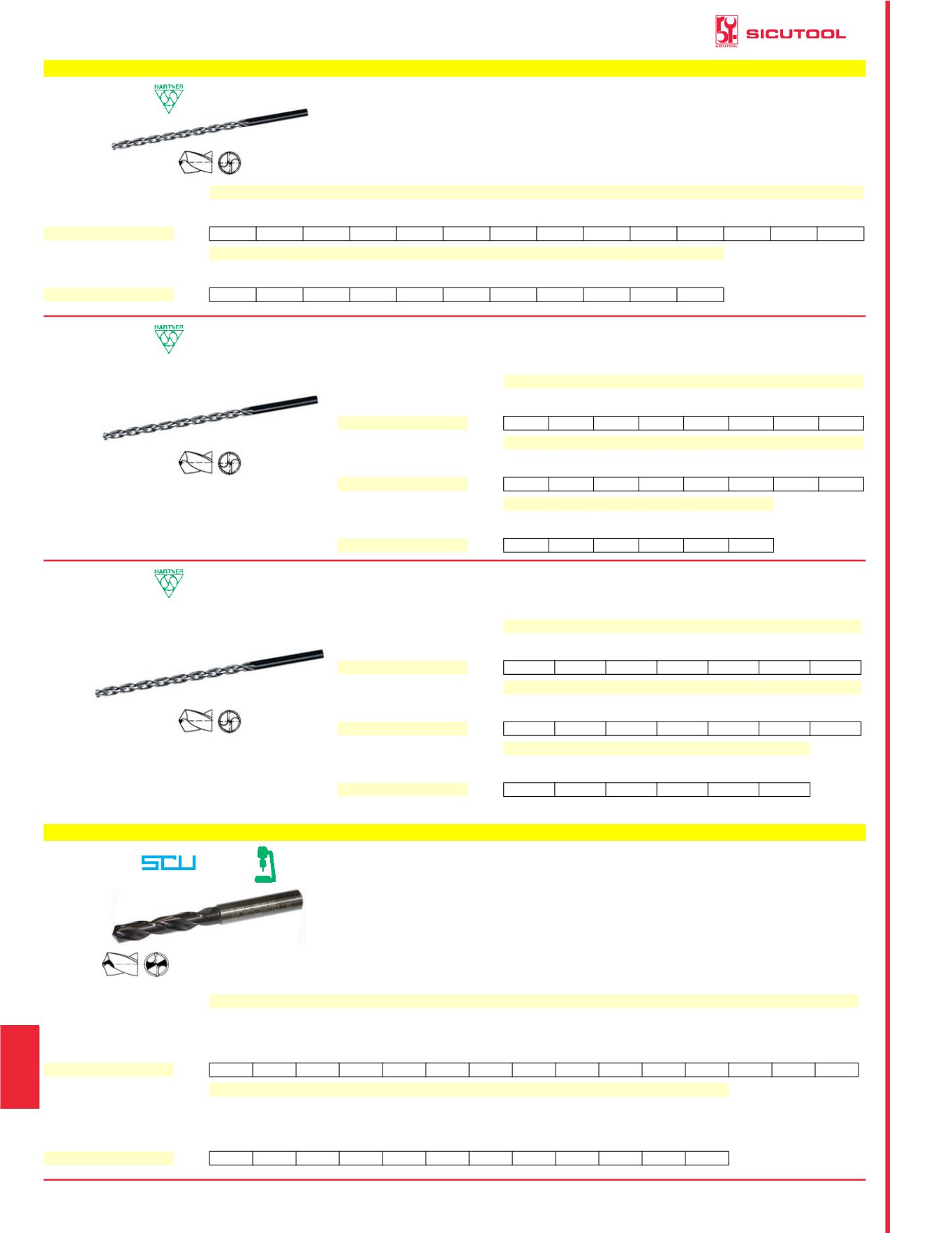

EXTRA-LONG DRILLS FOR METALS, RIGHT-HAND ROTATION
1130
13
Prices in EURO - VAT not included
EXTRA-LONG DRILLS FOR METALS, RIGHT-HAND ROTATION
8492G
HSS
Orig. Hartner - Art. 81440
DIN 1869. Type FN. HSS. Cutting angle 130°.
EXTRA-LONG pattern.
For steel and steel cast iron up to R 1000 N/sqmm, spheroidal cast iron, aluminium and
aluminium alloys, brass and bronze.
Cylindrical shank.
Ø
mm
2
2,5
3
3,2
3,5
4
4,2
4,5
5
5,1
5,2
5,5
6
6,5
Overall length
mm 125 140 150 155 165 175 175 185 195 195 195 205 205 215
Helix length
mm 85
95
100 105 115 120 120 125 135 135 135 140 140 150
8492G
Each 17,90 17,90 19,90 24,80 19,90 20,50 27,70 23,20 23,20 36,10 36,70 26,10 25,40 35,60
Ø
mm
7
7,5
8
8,5
9
9,5
10
10,5
11
11,5
12
Overall length
mm 225 225 240 240 250 250 265 265 280 280 295
Helix length
mm 155 155 165 165 175 175 185 185 195 195 205
8492G
Each 36,70 42,90 45,10 58,70 63,20 74,50 65,40 115,00 88,10 106,00 99,30
EXTRA-LONGDRILLSFORMETALS,RIGHT-HANDROTATION
8494G
HSS
Orig. Hartner - Art. 81540
Product description as Art. 8492G
Cylindrical shank.
Ø
mm
3
3,5
4
4,5
5
5,5
6
6,5
Overall length
mm 190 210 220 235 245 260 260 275
Helix length
mm 130 145 150 160 170 180 180 190
8494G
Each 27,10 28,80 28,80 32,20 31,10 38,90 37,30 44,60
Ø
mm
7
7,5
8
8,5
9
9,5
10 10,2
Overall length
mm 290 290 305 305 320 320 340 340
Helix length
mm 200 200 210 210 220 220 235 235
8494G
Each 46,80 63,20 54,70 85,70 83,50 101,00 89,10 136,00
Ø
mm
10,5 11 11,5 12 12,5 13
Overall length
mm 340 365 365 375 375 375
Helix length
mm 235 250 250 260 260 260
8494G
Each 130,00 126,00 148,00 144,00 152,00 155,00
vuoto
EXTRA-LONGDRILLSFORMETALS,RIGHT-HANDROTATION
8496G
HSS
Orig. Hartner - Art. 81640
Product description as Art. 8492G
Cylindrical shank.
Ø
mm
3,5
4
4,5
5
5,5
6
6,5
Overall length
mm 265
280
295
315
330
330
350
Helix length
mm 180
190
200
210
225
225
235
8496G
Each 36,70 36,70 45,70 44,60 48,10 50,80 54,70
Ø
mm
7
7,5
8
8,5
9
9,5*
10
Overall length
mm 370
370
390
390
410
410
430
Helix length
mm 250
250
265
265
280
280
295
8496G
Each 69,90 85,70 81,20 103,00 111,00 125,00 131,00
Ø
mm
10,5*
11*
11,5
12
12,5
13
Overall length
mm 430
455
455
480
480
480
Helix length
mm 295
310
310
330
330
330
8496G
Each 129,00 152,00 167,00 179,00 175,00 179,00
* Sizes running out of stock.
EXTRA-LONGDRILLSFORMETALS,RIGHT-HANDROTATION
SOLID CARBIDE TWIST DRILLS, HIGH-PERFORMANCE, RIGHT-HAND ROTATION
8497GA
HARTMETALL
TiAIN
Prod. SCU - Orig. M.D. DRILLS - Art. 13880/89413
DIN 6537. Cutting angle 140°.
EXTRA-SHORT model for boring depths 3 x D.
Particular sharpening and special web thinning ensure max drilling parameters, precise hole
alignment, minimum diameter tolerances and good finishing of the hole surface. Suitable for high-
precision and high-performance machines. For building and case hardening steel, steel cast iron,
quenched and tempered steel, alloy steel with breaking load up to R 1200 N/sqmm, carbonium
steel and aluminium alloys with high silicium content.
Cylindrical drive. DIN 6536 HA compliant. TIALN treatment.
Ø
mm
3
3,3 3,5
4
4,2 4,5 4,8
5
5,5 5,8
6
6,5 6,8
7
7,5
Overall length
mm 62
62
62
66
66
66
66
66
66
66
66
79
79
79
79
Helix length
mm 20
20
20
24
24
24
28
28
28
28
28
34
34
34
41
Drive Ø
mm 6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
Drive length
mm 36
36
36
36
36
36
36
36
36
36
36
36
36
36
36
8497GA
Each 38,40 38,40 38,40 38,40 38,40 38,40 38,40 38,40 38,40 38,40 38,40 38,40 38,40 38,40 38,40
Ø
mm
8
8,5
9
9,5
10 10,2 10,5 11 11,5 12 12.5 13
Overall length
mm 79
89
89
89
89 102 102 102 102 102 107 107
Helix length
mm 41
47
47
47
47
55
55
55
55
55
60
60
Drive Ø
mm 8
10
10
10
10
12
12
12
12
12
14
14
Drive length
mm 36
40
40
40
40
45
45
45
45
45
45
45
8497GA
Each 38,40 42,50 42,50 42,50 42,50 63,70 63,70 63,70 63,70 63,70 85,10 85,10
